Dual-slope rotary laser
Fukuda FRE-203
An electronic self-levelling rotary laser with slope and scanning control.
Request product details
A closer look
PRODUCT OVERVIEW

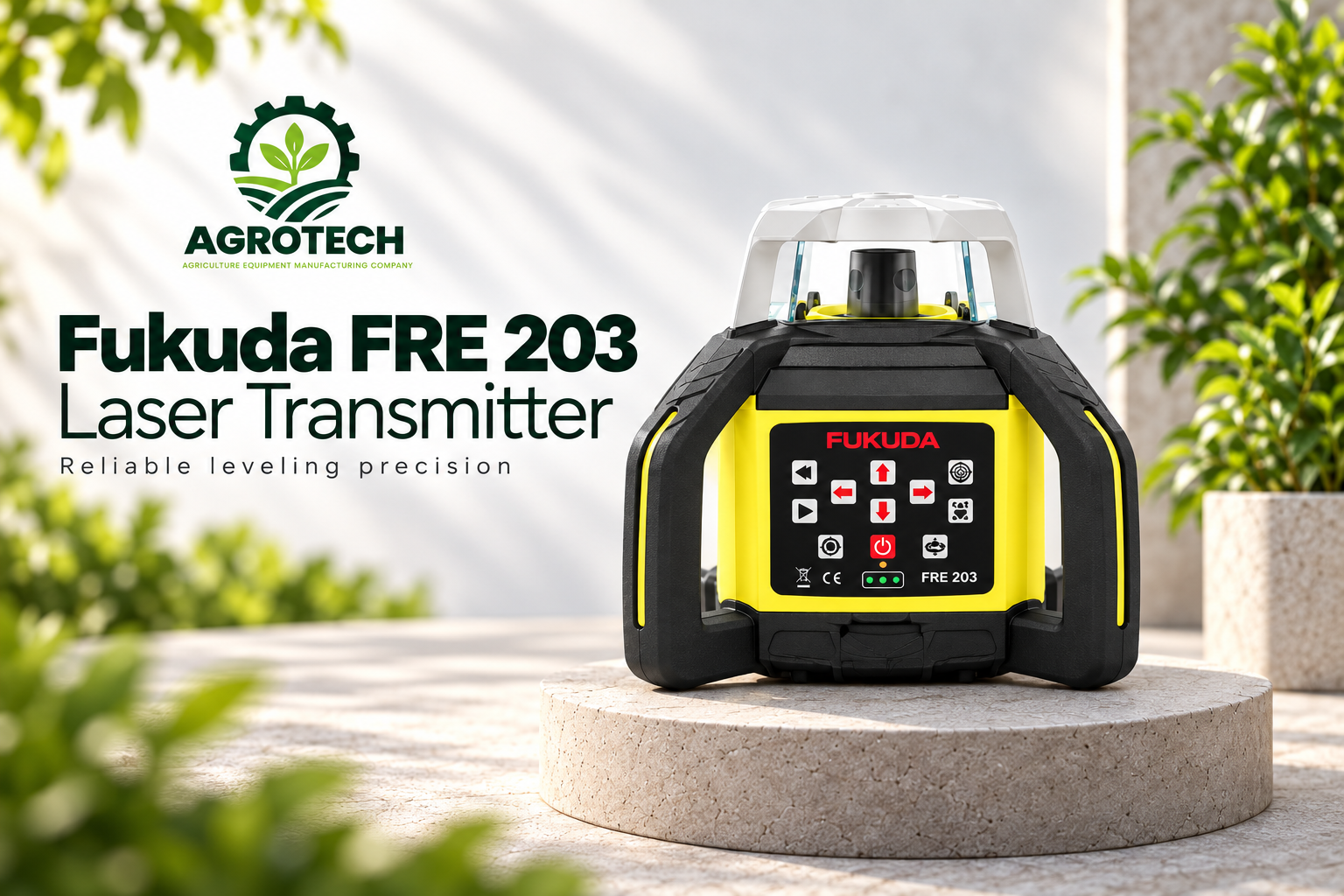

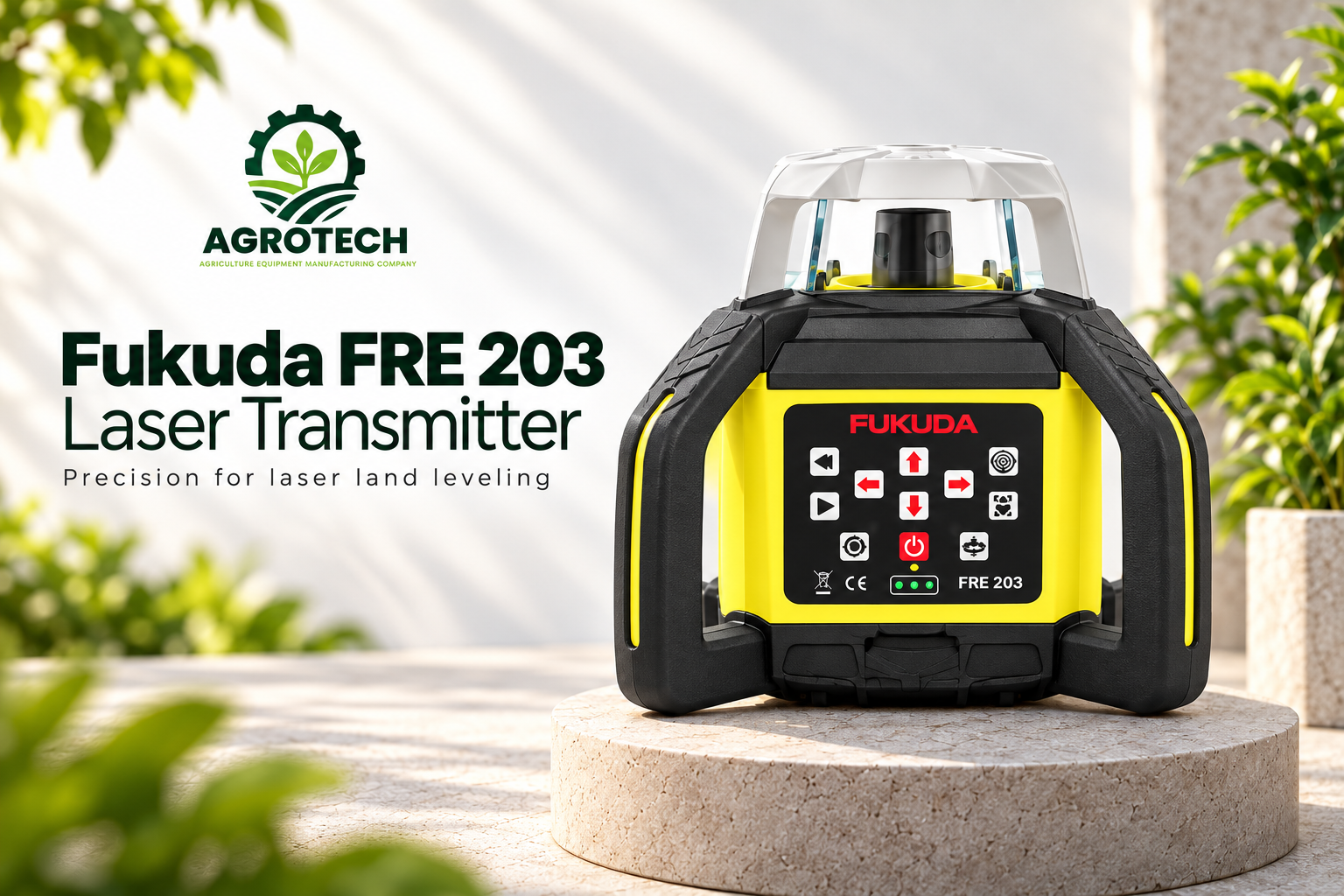

About the Fukuda FRE-203
The Fukuda FRE-203 is an electronic self-levelling rotary laser for horizontal and vertical reference work. Its official specification includes dual-axis manual slope, selectable rotation speeds, directional scanning and receiver-assisted operation across large sites.
Key features
- Electronic self-levelling
- Horizontal and vertical operation
- Dual-axis manual slope control
- Selectable rotation speeds
- Directional scanning modes
- Shock-alert function
TECHNICAL DETAILS
Product specifications
Published values are used where manufacturer data is available. Agrotech confirms the supplied model, compatibility and final specifications before ordering.
- Accuracy
- Horizontal +/-20 arc seconds; vertical +/-20 arc seconds
- Self-levelling range
- 5 degrees
- Manual slope
- +/-10% in four directions
- Measuring range
- Minimum 400 m diameter with detector
- Rotation speeds
- 60, 120, 300 and 600 rpm
- Scanning angles
- 10, 45, 90 and 180 degrees
- Operating temperature
- -20 C to +50 C
- Protection rating
- IP55
- Typical runtime
- Up to 40 hours depending on conditions
