Heavy-duty rotary laser

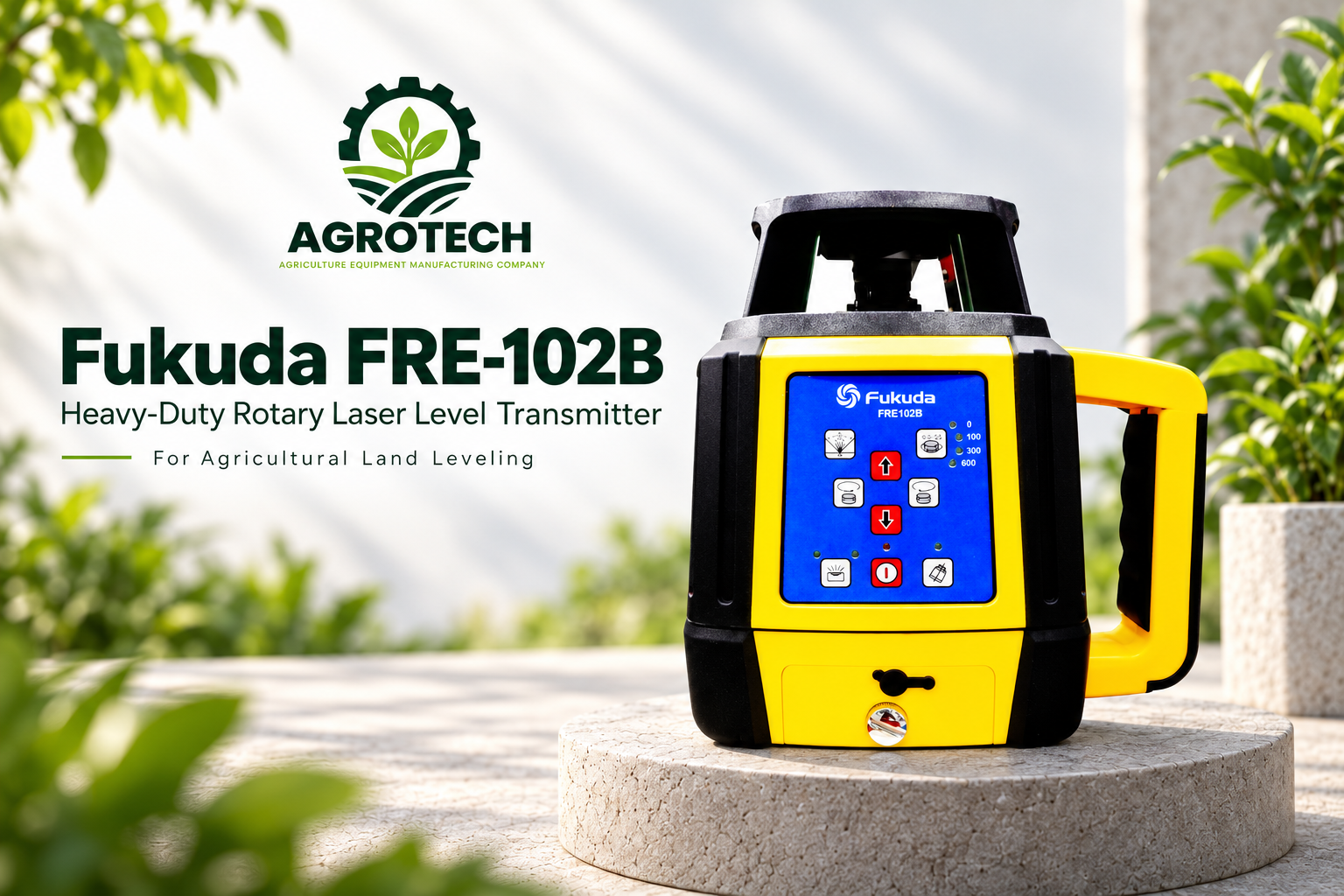

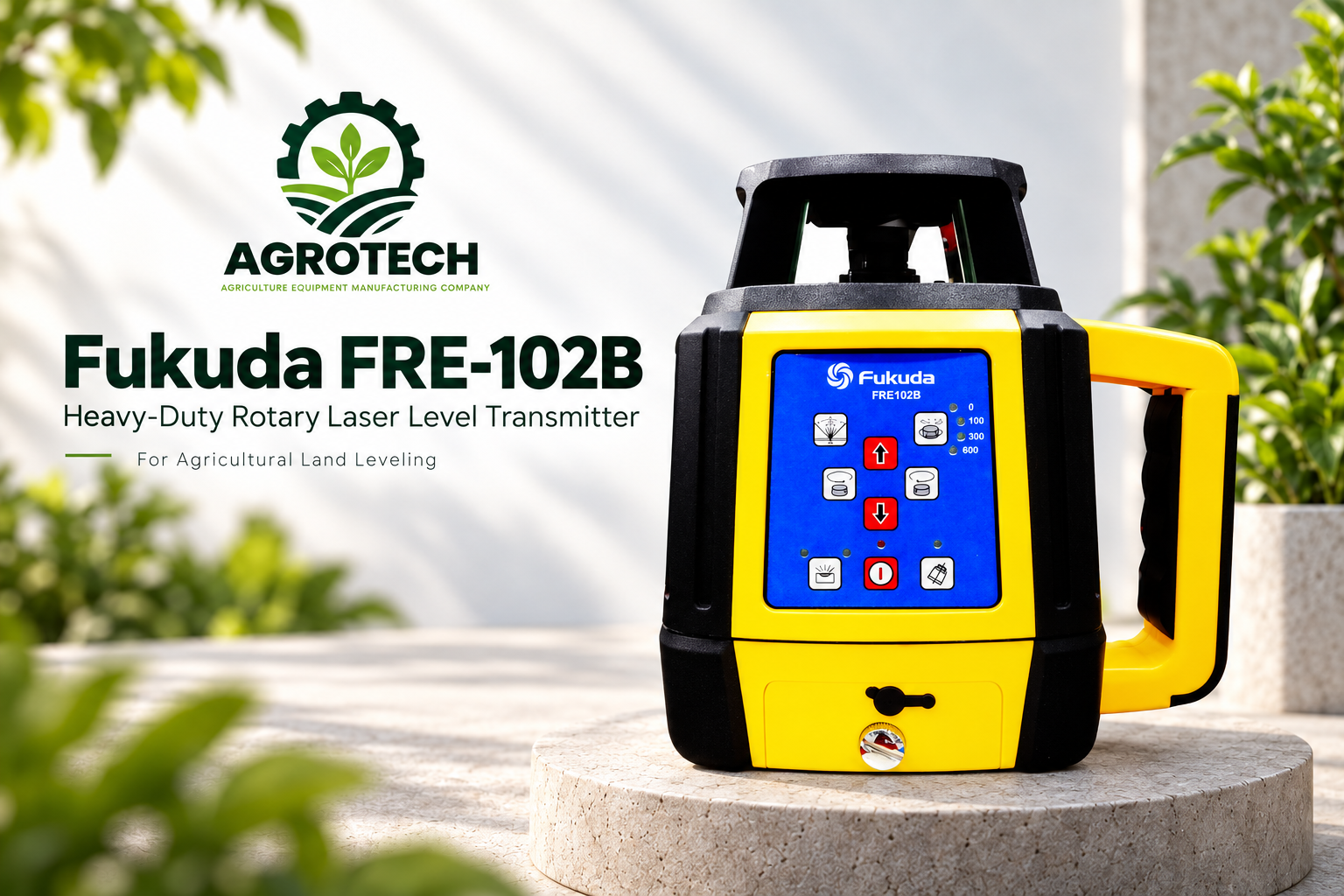

Fukuda FRE-102B
A long-range rotary laser level transmitter designed for agricultural land levelling.
Request product details
A closer look
PRODUCT OVERVIEW
About the Fukuda FRE-102B
The Fukuda FRE-102B creates a 360-degree reference for field grading. Fukuda specifies horizontal or vertical rotation, sensor levelling with an out-of-level alarm, directional scanning and a 600 rpm rotation speed for receiver-assisted work.
Key features
- 360-degree horizontal or vertical rotation
- Sensor levelling with out-of-level alarm
- Directional scanning with adjustable angle
- 600 rpm rotation speed
- Waterproof and dust-resistant construction
- Automatic shut-off after prolonged out-of-level status
TECHNICAL DETAILS
Product specifications
Published values are used where manufacturer data is available. Agrotech confirms the supplied model, compatibility and final specifications before ordering.
- Beam options
- Red or green beam
- Standard accuracy
- +/-10 arc seconds (1.5 mm at 30 m)
- Working range
- 900 m diameter with receiver
- Rotation speed
- 600 rpm
- Wavelength
- 635 nm
- Power supply
- 4 x 4000 mAh Ni-MH rechargeable batteries
- Working temperature
- -20 C to +60 C
- Protection
- Waterproof and dust resistant
